• Width: 200mm
• Height: 675mm
• Depth: 590mm
• Weight: 28KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-50l/sz
• Noise level: 41-57dB(A)

The standard equipment of the Z1 suction systems includes a diffusor at the output of the system, which guarantees the legally prescribed exhaust air flow of a maximum of one meter per second. Alternatively, an H14 filter or an activated carbon filter can be installed there in compliance with the prescribed guide value. As a further alternative, an adapter for the exhaust air connection to the outside is optionally available.

The Z1 has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag. The fifth suction level serves as a boost for short-term maximum suction power.

In the extraction systems of the Z1 ECO and Z1 CAM model series the new Smart Drive control for carbon brush motors is used. This technology enables motor runtimes of 1500 hours and more, particularly in intermittent operation with handpiece workstations and devices. The running time can be significantly increased by changing the carbon brushes. This means that a cost-efficient extraction solution is available, which nevertheless enables a very long service life under moderate operating conditions.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

For a higher comfort in handling the device we have developed an external control module, which you can additionally install at a freely selectable position of your work station. Always at your eye level, you control and operate the unit and obtain directly important information about the suction system.

• Width: 200mm
• Height: 675mm
• Depth: 590mm
• Weight: 33KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-50l/sz
• Noise level: 41-57dB(A)

The standard equipment of the Z1 suction systems includes a diffusor at the output of the system, which guarantees the legally prescribed exhaust air flow of a maximum of one meter per second. Alternatively, an H14 filter or an activated carbon filter can be installed there in compliance with the prescribed guide value. As a further alternative, an adapter for the exhaust air connection to the outside is optionally available.

The Z1 has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag. The fifth suction level serves as a boost for short-term maximum suction power.

In the extraction systems of the Z1 ECO and Z1 CAM model series the new Smart Drive control for carbon brush motors is used. This technology enables motor runtimes of 1500 hours and more, particularly in intermittent operation with handpiece workstations and devices. The running time can be significantly increased by changing the carbon brushes. This means that a cost-efficient extraction solution is available, which nevertheless enables a very long service life under moderate operating conditions.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

For a higher comfort in handling the device we have developed an external control module, which you can additionally install at a freely selectable position of your work station. Always at your eye level, you control and operate the unit and obtain directly important information about the suction system.

• Narrow filter door
• Width: 300mm
• Height with handle: 440mm
• Depth: 435mm
• Weight: 19KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-40l/sz
• Noise level: 45-59dB(A)

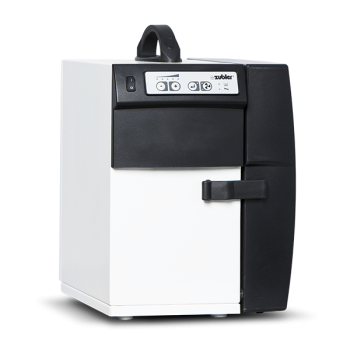

The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application

The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag.

The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series.This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

• Table installation
• Narrow filter door
• Width: 300mm
• Height with handle: 410mm
• Depth: 435mm
• Weight: 19KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-40l/sz
• Noise level: 45-59dB(A)

The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application.

The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag.

The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

• Wide filter door
• Width: 450mm
• Height with handle: 440mm
• Depth: 435mm
• Depth: 435mm
• Weight: 19KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-40l/sz
• Noise level: 45-59dB(A)

The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application.

The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag.

The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

• Table installation
• Wide door
• Width: 450mm
• Height with handle: 410mm
• Depth: 435mm
• Weight: 19KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-40l/sz
• Noise level: 45-59dB(A)

The Z1-M Series was designed as a compact unit with exchangeable filter door system and electronic suction power control for the individual field of application.

The Z1-M has 5 suction levels, the performance of which the user can freely set and store in the first four levels. The fifth suction level serves as a boost for short-term maximum suction power. The unit has also an intelligent control of the suction power, which adjusts itself to the programmed setting depending on the filling level of the filter. This ensures a constant performance independent of the filling level of the filter bag.

The new Smart Drive control for carbon brush motors is installed in the suction systems of the Z1-M series. This technology ensures a guaranteed motor operating time of 1500 hours without changing the carbon brushes. In addition, the long running time can be increased considerably by the possibility of changing the carbon brushes.

The suffix refers to suction systems in dental laboratories. It confirms that the dust extractor meets the requirements of the test specification DIN EN 60335-2-69, Appendix AA (degree of dust separation, filter change, dust extraction from the unit etc.) or that the dental suction system complies with the requirements described in the test specification GS-IFA-M020.

A Bluetooth connection with Zubler Extraction Technology APP gives you the possibility to obtain rapidly a high number of information about the condition of the suction system. You can easily make individual settings on the device from your smartphone or tablet and contact us via remote maintenance in case of service.

• Width: 200mm
• Height: 675mm
• Depth: 590mm
• Height with handle: 410mm
• Weight: 14KG
• Voltage: 230V AC ±5%, 50-60Hz
• Throughput: 15-50l/sz
• Noise level: 41-57dB(A)

For greater convenience during use we have developed an external operating module that you can install in addition to the device in a freely selectable place at the workstation. Always at head height, you can monitor and control the unit and obtain important information directly from the suction unit.

The two companies are bound by a partnership that has lasted 40 years, in which they have worked side by side for convenience and performance in your dental laboratory.

The Z1-AT has five suction levels, whose performance at the first four levels can be freely adjusted and saved by the user. The device also features intelligent regulation of the suction power, which adapts itself to the specified setting depending on how full the filter is. It thus ensures constant performance irrespective of the level in the dust container. The fifth suction level serves as a boost for short-term maximum suction power.

Like all Z1 suction units, we use the latest technology for controlling the motors in the Z1-AT too. A hitherto unequalled guaranteed lifetime of 5,000 hours can be achieved by replacing the carbon brushes several times.The user can check the actual running time of the motor in the system at any time with the help of a display of the working hours that is visible in the Zubler suction technology app.

The new Z1-AT suction unit has been designed such that it can be integrated in the simplest possible way and without modifications into the installation spaces of all previous and current drawer suction units from Freuding. This enables you to replace an existing system by the new generation Z1-AT and to use all of its technological progress.

This interface in conjunction with the Zubler suction technology app enables you to obtain a great deal of information from the suction unit. You can make individual settings conveniently from your Smartphone or tablet and contact us via remote maintenance when service is required. In addition to that you can get information about the motor running time, filter service life and much more besides.

The use of high-quality insulating materials reduces the noise level of the Z1-AT single workstation suction unit to a minimum.
